RS1001FL

1.0A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY DIODE

RS1001FL Features

* Low Profile 1.08mm Max. Case Height

* Glass Passivated Die Construction

* Low Forward Voltage Drop, High Efficiency

* Surge Overload Rating to 30A Peak

* Fast Recovery Time C

* Ideally Suited for Automatic Assembly

* Plastic Material

* UL Recognition Fla

RS1001FL Datasheet (38.77 KB)

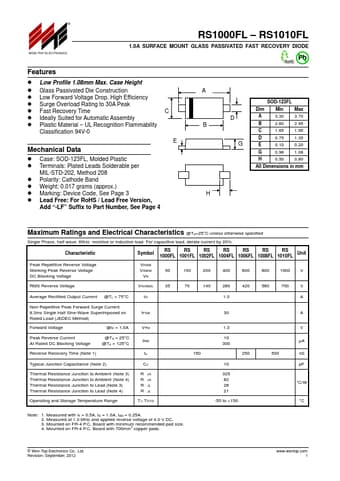

Preview of RS1001FL PDF

Datasheet Details

Part number:

RS1001FL

Manufacturer:

WON-TOP

File Size:

38.77 KB

Description:

1.0a surface mount glass passivated fast recovery diode.
