SB180 - 1.0A SCHOTTKY BARRIER DIODE

This page provides the datasheet information for the SB180, a member of the SB120-WON 1.0A SCHOTTKY BARRIER DIODE family.

Datasheet Summary

Features

  • Schottky Barrier Chip.
  • Guard Ring for Transient and ESD Protection.
  • Surge Overload Rating to 30A Peak.
  • Low Power Loss, High Efficiency.
  • Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data.
  • Case: DO-41, Molded Plastic.
  • Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
  • Polarity: Cathode Band.
  • Weight: 0.35 grams (approx. ).
  • Mounting Position: Any.
  • Marking: Type Number.
  • Lead Fre.

📥 Download Datasheet

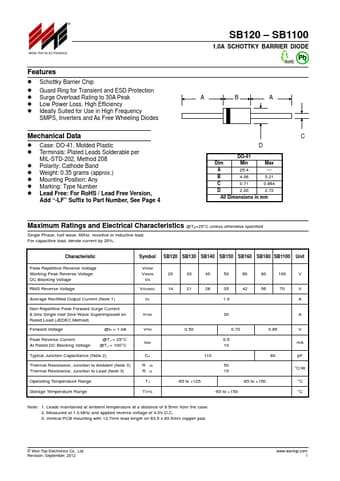

Datasheet preview – SB180

Datasheet Details

Part number SB180
Manufacturer WON-TOP
File Size 40.38 KB
Description 1.0A SCHOTTKY BARRIER DIODE
Datasheet download datasheet SB180 Datasheet
Additional preview pages of the SB180 datasheet.

📁 Similar Datasheet

  • SB180 - 1 AMPERE SCHOTTKY BARRIER RECTIFIERS (Pan Jit International Inc.)
  • SB180 - 1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • SB180 - SCHOTTKY BARRIER RECTIFIER (GOOD-ARK Electronics)
  • SB180 - SCHOTTKY BARRIER RECTIFIER DIODES (EIC)
  • SB180 - Schottky Rectifiers (Fairchild Semiconductor)
  • SB180 - Schottky Barrier Rectifiers (LRC)
  • SB180 - SCHOTTKY BARRIER RECTIFIERS (CDIL)
  • SB180 - Schottky Barrier Rectifiers (LGE)
  • SB180 - SCHOTTKY BARRIER RECTIFIER (SEMTECH)
  • SB180-E-41C - SCHOTTKY BARRIER RECTIFIER (Gulf Semiconductor)
Other Datasheets by WON-TOP
  • SB10100 - 10A SCHOTTKY BARRIER RECTIFIER
  • SB10100CT - 10A DUAL SCHOTTKY BARRIER RECTIFIER
  • SB10100D - 10A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • SB10100DC - 10A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER
  • SB10100F - 10A SCHOTTKY BARRIER RECTIFIER
  • SB10100FCT - 10A DUAL SCHOTTKY BARRIER RECTIFIER
  • SB10150 - 10A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
  • SB10150F - 10A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
® WON-TOP ELECTRONICS Features  Schottky Barrier Chip  Guard Ring for Transient and ESD Protection  Surge Overload Rating to 30A Peak  Low Power Loss, High Efficiency  Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data  Case: DO-41, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: Cathode Band  Weight: 0.35 grams (approx.)  Mounting Position: Any  Marking: Type Number  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 SB120 – SB1100 1.0A SCHOTTKY BARRIER DIODE Pb ABA D DO-41 Dim Min Max A 25.4 — B 4.06 5.21 C 0.71 0.864 D 2.00 2.
