SB2045FCT, SB2020FCT-WON Datasheet - WON-TOP

SB2045FCT 20A DUAL SCHOTTKY BARRIER RECTIFIER

SB2045FCT Features

* Schottky Barrier Chip

* Guard Ring for Transient Protection

* Low Forward Voltage Drop

* Low Power Loss, High Efficiency

* High Surge Current Capability

* Epoxy Meets UL 94V-0 Classification

* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling

SB2020FCT-WON-TOP.pdf

This datasheet PDF includes multiple part numbers: SB2045FCT, SB2020FCT-WON. Please refer to the document for exact specifications by model.

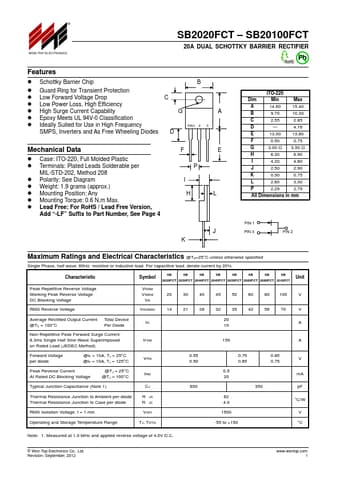

SB2045FCT Datasheet Preview Page 2 SB2045FCT Datasheet Preview Page 3

Datasheet Details

Part number:

SB2045FCT, SB2020FCT-WON

Manufacturer:

WON-TOP

File Size:

42.53 KB

Description:

20a dual schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: SB2045FCT, SB2020FCT-WON.
Please refer to the document for exact specifications by model.
