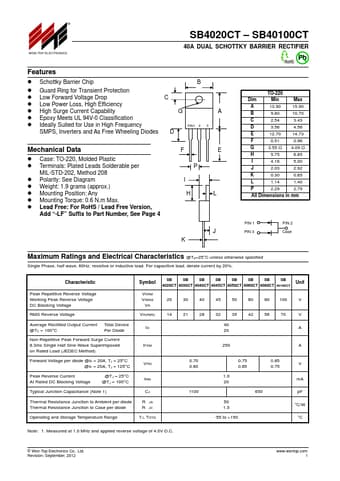

SB4045CT, SB4020CT-WON - 40A DUAL SCHOTTKY BARRIER RECTIFIER

WON-TOP

Datasheet Details

Part number	SB4045CT, SB4020CT-WON
Manufacturer	WON-TOP
File Size	42.29 KB
Description	40A DUAL SCHOTTKY BARRIER RECTIFIER
Datasheet	SB4020CT-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB4045CT, SB4020CT-WON. Please refer to the document for exact specifications by model.

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 2 3 A Mechanical Data.
Case: TO-220, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.9 gr.
