SB4060FCT, SB4020FCT-WON Datasheet - WON-TOP

SB4060FCT 40A DUAL SCHOTTKY BARRIER RECTIFIER

SB4060FCT Features

* Schottky Barrier Chip

* Guard Ring for Transient Protection

* Low Forward Voltage Drop

* Low Power Loss, High Efficiency

* High Surge Current Capability

* Epoxy Meets UL 94V-0 Classification

* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling

SB4020FCT-WON-TOP.pdf

This datasheet PDF includes multiple part numbers: SB4060FCT, SB4020FCT-WON. Please refer to the document for exact specifications by model.

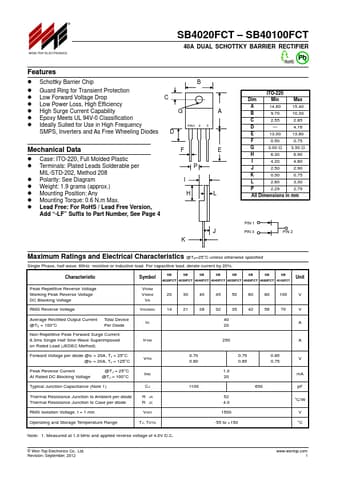

SB4060FCT Datasheet Preview Page 2 SB4060FCT Datasheet Preview Page 3

Datasheet Details

Part number:

SB4060FCT, SB4020FCT-WON

Manufacturer:

WON-TOP

File Size:

42.43 KB

Description:

40a dual schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: SB4060FCT, SB4020FCT-WON.
Please refer to the document for exact specifications by model.
