SB8100F, SB820F-WON 8.0A SCHOTTKY BARRIER RECTIFIER

SB8100F Description

® WON-TOP ELECTRONICS SB820F * SB8100F 8.0A SCHOTTKY BARRIER RECTIFIER Pb .

SB8100F Features

* Schottky Barrier Chip
* Guard Ring for Transient Protection
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Current Capability
* Epoxy Meets UL 94V-0 Classification
* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB8100F, SB820F-WON. Please refer to the document for exact specifications by model.

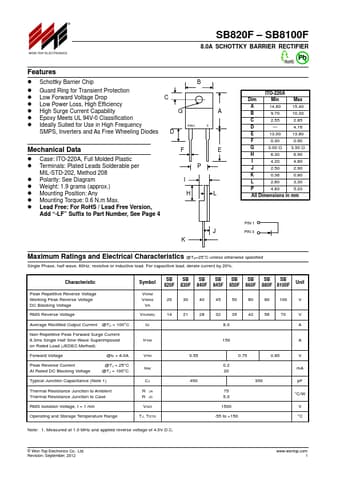

datasheet Preview Page 2 datasheet Preview Page 3
