SF23

2.0A SUPERFAST DIODE

SF23 Features

* Diffused Junction

* Low Forward Voltage Drop

* High Surge Current Capability

* High Reliability

* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data

* Case: DO-15, Molded Plastic

* Terminals: Plated Leads Solderable per

SF23 Datasheet (39.93 KB)

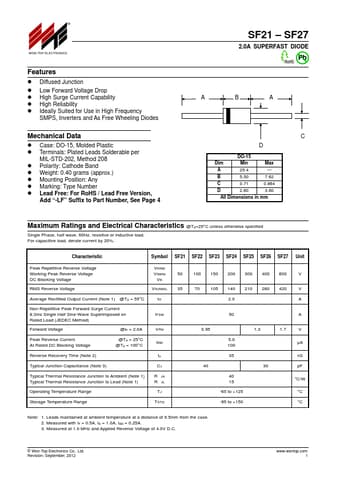

Preview of SF23 PDF

Datasheet Details

Part number:

SF23

Manufacturer:

WON-TOP

File Size:

39.93 KB

Description:

2.0a superfast diode.
