P1500SC

Thyristors Solid Protection Device Bidirectional transient voltage suppressors

P1500SC Features

* For surface mounted applications to optimize board space

* Low profile package

* Bidirectional crowbar protection

* Low leakage current : I = 5uA max

* Low on-state voltage

* Low Capacitance

* Response Time is < 1us

* YD/T 950 IEC 61000-4-5

* YD/T 993 ITU K.20/2

P1500SC Datasheet (362.64 KB)

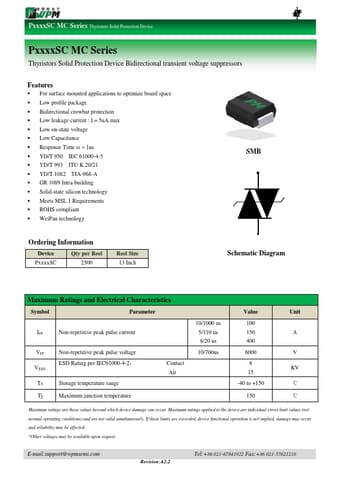

Preview of P1500SC PDF

Datasheet Details

Part number:

P1500SC

Manufacturer:

WPM

File Size:

362.64 KB

Description:

Thyristors solid protection device bidirectional transient voltage suppressors.
PxxxxSC MC Series Thyristors Solid Protection Device PxxxxSC MC Series Thyristors Solid Protection Device Bidirectional transient voltage suppressors.
