SD05LC Bidirectional small Packaged TVS Diodes

WPM

SD05LC Description

SD05LC Bidirectional small Packaged TVS Diodes for ESD Protection SD05LC Bidirectional small Packaged TVS Diodes for ESD Protection The SD05LC is de.

SD05LC Features

* Peak Power Dissipation
* 120 W (8 x 20 us Waveform)
* Replacement for MLV (0805)
* Protects One Power or I/O Port
* Low Clamping Voltage
* Low Leakage
* Stand-off Voltage: 5.0 V
* Response Time is < 1 ns
* Meets MSL 1 Requirements
* Solid-state

SD05LC Applications

* requiring transient overvoltage protection capability. It is intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. This device is ideal for situations where board space is at a premium.

📥 Download Datasheet

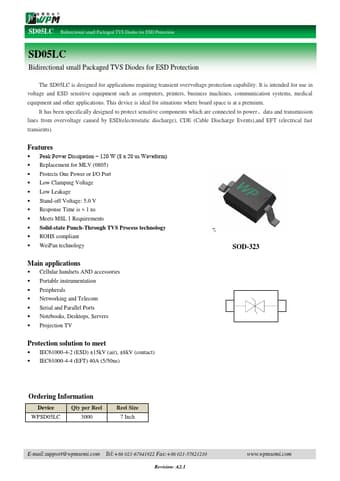

SD05LC Datasheet Preview — Preview of SD05LC PDF

Datasheet Details

Part number: SD05LC
Manufacturer: WPM
File Size: 394.90 KB
Datasheet: SD05LC-WPM.pdf
Description: Bidirectional small Packaged TVS Diodes
