10BJ7.0A, 10BJ5.0A 1000WTransient VoltageSuppressor

WPMTEK

Description

Integrated in OVP&OCP products provider 10BJ Series 1000W Transient Voltage Suppressor .
TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications,.

📥 Download Datasheet

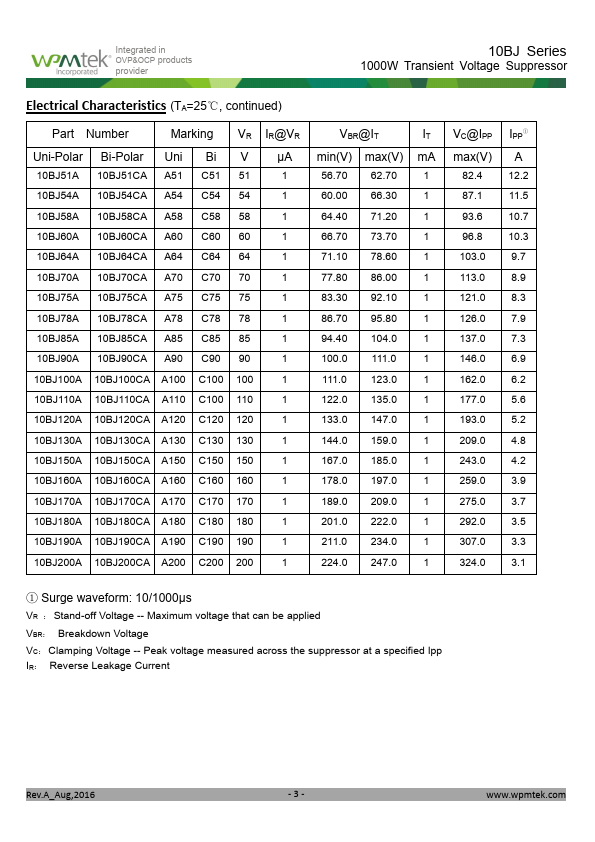

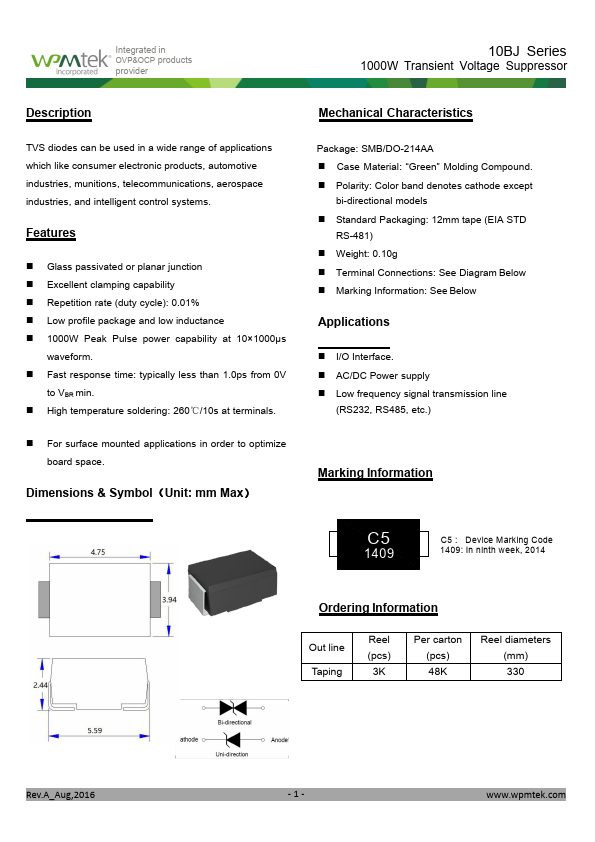

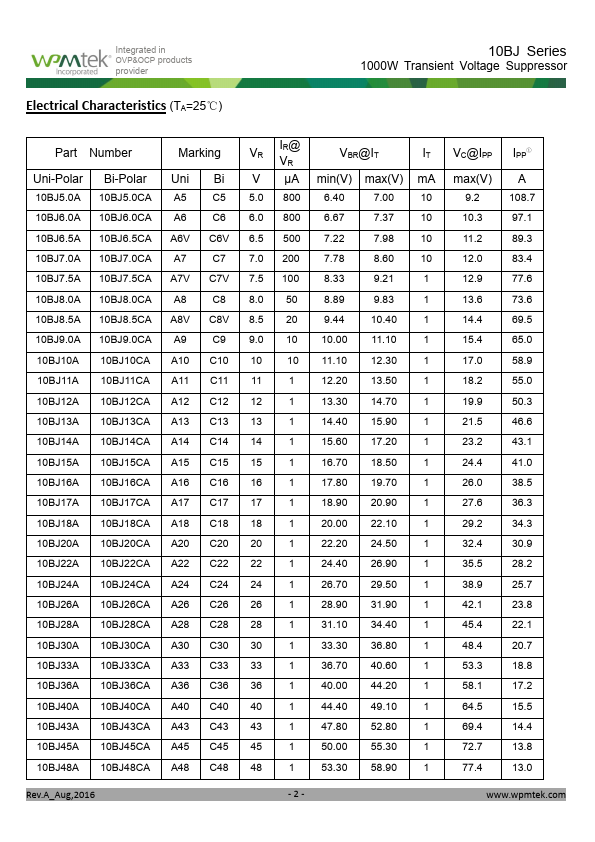

10BJ7.0A Datasheet Preview — This datasheet PDF includes multiple part numbers: 10BJ7.0A, 10BJ5.0A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 10BJ7.0A, 10BJ5.0A
Manufacturer: WPMTEK
File Size: 326.78 KB
Datasheet: 10BJ5.0A-WPMTEK.pdf
Description: 1000WTransient VoltageSuppressor
Note: This datasheet PDF includes multiple part numbers: 10BJ7.0A, 10BJ5.0A.
Please refer to the document for exact specifications by model.

Features

* Glass passivated or planar junction
* Excellent clamping capability
* Repetition rate (duty cycle): 0.01%
* Low profile package and low inductance
* 1000W Peak Pulse power capability at 10×1000μs waveform.
* Fast response time: typically less than 1.0ps from 0V to VBR min.
