SS8050 Datasheet - Weitron Technology

SS8050 - NPN Transistor

NPN General Purpose Transistors P b Lead(Pb)-Free SS8050 TO-92 1.

EMITTER 2.

BASE 3.

COLLECTOR 123 MAXIMUM RATINGS(TA=25˚C unless otherwise noted) Rating Collector-Base Voltage Symbol VCBO Collector-Emitter Voltage VCEO Emitter-Base Voltage VEBO Collector Current-Continuous IC Total Device Dissipation TA=25°C Junction and Storage, Temperature PD TJ,Tstg Value 40 25 5 1.5 1.0 -55 to +150 Unit V V V A W °C ELECTRICAL CHARACTERISTICS (TA=25˚C unless otherwise noted) Characteristic

SS8050_WeitronTechnology.pdf

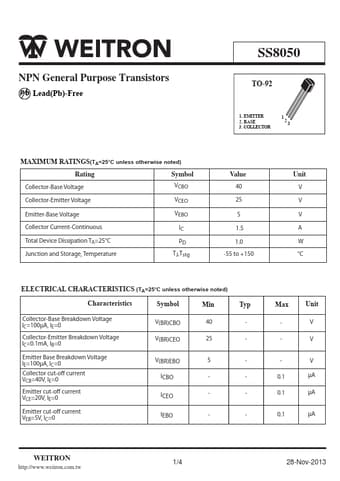

Preview of SS8050 PDF
SS8050 Datasheet Preview Page 2 SS8050 Datasheet Preview Page 3

Datasheet Details

Part number:

SS8050

Manufacturer:

Weitron Technology

File Size:

358.04 KB

Description:

Npn transistor.
