2SC2411K NPN Transistor

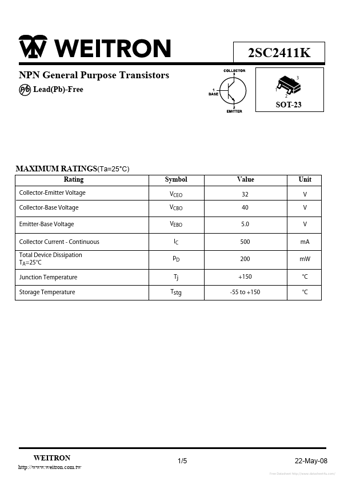

2SC2411K NPN General Purpose Transistors P b Lead(Pb)-Free 1 2 3 SOT-23 MAXIMUM RATINGS(Ta=25°C) Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous Total Device Dissipation TA=25°C Junction Temperature Storage Temperature Symbol VCEO VCBO VEBO IC PD Tj Tstg Value 32 40 5.0 500 200 +150 -55 to +150 Unit V V V mA mW °C °C WEITRON http://www.weitron.com.tw 1/5 22-May-08 Free Datasheet http://www.datasheet4u.com/ 2SC2411K ELECTRICAL C.

2SC2411K Datasheet (500.55 KB)
