2SC3838 High-Frequency Amplifier Transistor

2SC3838 High-Frequency Amplifier Transistor NPN Silicon P b Lead(Pb)-Free 1 BASE 2 EMITTER COLLECTOR 3 3 1 2 SOT-23 MAXIMUM RATINGS (Ta=25ºC) Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current-Continuous Symbol VCEO VCBO VEBO IC Value 11 20 3.0 50 Unit V V V mA THERMAL CHARACTERISTICS Characteristics Total Device Dissipation FR-5 Board (1) TA =25°C Thermal Resistance, Junction Ambient Junction and Storage, Temperature Symbol PD R θJA TJ, Tstg Valu.

2SC3838_Weitron.pdf

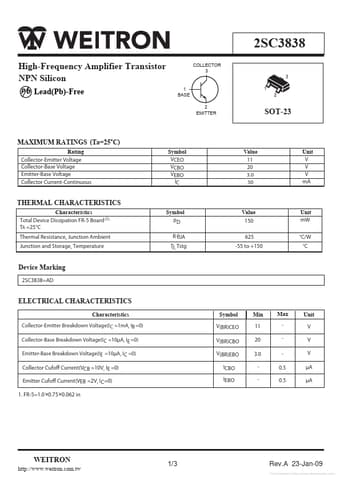

Preview of 2SC3838 PDF
2SC3838 Datasheet Preview Page 2 2SC3838 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC3838

Manufacturer:

Weitron

File Size:

544.78 KB

Description:

High-frequency amplifier transistor.
