WMF512K8-xxx5 Datasheet - White Electronic Designs Corporation

512Kx8 MONOLITHIC FLASH

WMF512K8-xxx5 Features

* Access Times of 60, 70, 90, 120, 150ns Packaging

* 32 pin, Hermetic Ceramic, 0.600" DIP (Package 300)

* 32 lead, Hermetic Ceramic, 0.400" SOJ (Package 101)

* 32 pin, Rectangular Ceramic Leadless Chip Carrier (Package 601)

* 32 lead Flatpack (Package 220) 1,000,000 Era

WMF512K8-xxx5 General Description

A0-18 I/O0-7 CS# OE# WE# VCC VSS Address Inputs Data Input/Output Chip Select Output Enable Write Enable +5.0V Power Ground White Electronic Designs Corp. reserves the right to change products or speciļ¬cations without notice. November 2005 Rev. 6 1 White Electronic Designs Corporation * (60.

WMF512K8-xxx5 Datasheet (472.23 KB)

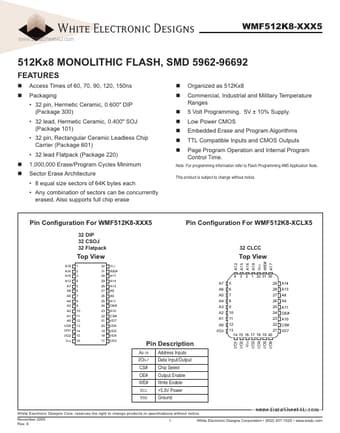

Preview of WMF512K8-xxx5 PDF

Datasheet Details

Part number:

WMF512K8-xxx5

Manufacturer:

White Electronic Designs Corporation

File Size:

472.23 KB

Description:

512kx8 monolithic flash.
