EDI7F2331MV - 1Mx32 FLASH MODULE

Datasheet Summary

Description

The EDI7F331MV and EDI7F2331MV are organized as one and two banks of 1Mx32 respectively.

The modules are based on AMDs AM29LV008T - 1Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate.

Features

1Mx32 and 2x1Mx32 Densities Based on AMD - AM29LV008T Flash Device Fast Read Access Time - 80ns 3.3V Only Reprogramming Flexible, Sector Architecture.
One 16Kbyte, two 8Kbyte, one 32Kbyte and ﬁfteen 64Kbyte sectors Any combination of sectors can be erased Also supports full chip erase Sector Protection Hardware method that disables any combination of sectors from write or erase operations EDI7F2331MV-BNC: 2x1Mx32 80 PIN SIMM E1.

Datasheet Details

Part number	EDI7F2331MV
Manufacturer	White Electronic Designs
File Size	281.06 KB
Description	1Mx32 FLASH MODULE
Datasheet	EDI7F2331MV Datasheet

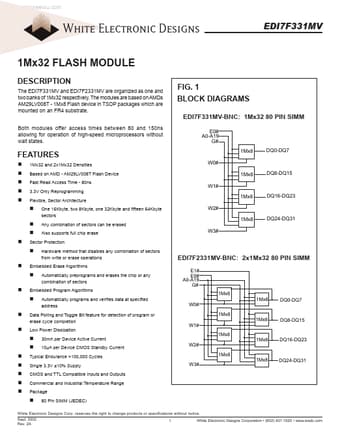

Additional preview pages of the EDI7F2331MV datasheet.

📁 Similar Datasheet

EDI7F2331MC - 1Mx32 FLASH MODULE (White Electronic Designs Corporation)

EDI7F33512C - 512Kx32 Flash (WEDC)

EDI7F33IMC - 1Megx32 Flash Module (EDI)

EDI7F34IMC - 1Megx32 Flash Module (EDI)

EDI2AG272128V-D1 - 2 Megabyte Sync/Sync Burst (White Electronic)

EDI2AG272129V - 2 Megabyte Sync/Sync Burst (White Electronic)

EDI2CG272128V - Sync/Sync Burst SRAM SO-DIMM (White Electronic)

EDI2CG472128V - 4 Megabyte Sync/Sync Burst (White Electronic)

EDI2CG472256V - 8 Megabyte Sync/Sync Burst (White Electronic)

EDI2DL32256V - 256Kx32 Synchronous Pipline Burst SRAM (White Electronic)

Full PDF Text Transcription

Click to expand full text

www.DataSheet4U.com White Electronic Designs 1Mx32 FLASH MODULE DESCRIPTION The EDI7F331MV and EDI7F2331MV are organized as one and two banks of 1Mx32 respectively. The modules are based on AMDs AM29LV008T - 1Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate. Both modules offer access times between 80 and 150ns allowing for operation of high-speed microprocessors without wait states. EDI7F331MV FIG. 1 BLOCK DIAGRAMS EDI7F331MV-BNC: 1Mx32 80 PIN SIMM E0# A0-A19 G# 1Mx8 W0# 1Mx8 W1# 1Mx8 W2# 1Mx8 W3# DQ24-DQ31 DQ16-DQ23 DQ8-DQ15 DQ0-DQ7 FEATURES      1Mx32 and 2x1Mx32 Densities Based on AMD - AM29LV008T Flash Device Fast Read Access Time - 80ns 3.
