W3EG2128M72AFSR-AD3, 2GB - 2x128Mx72 DDR SDRAM REGISTERED ECC

White Electronic Designs W3EG2128M72AFSR-D3 -AD3 FINAL * 2GB * 2x128Mx72 DDR SDRAM REGISTERED ECC, w/PLL, FBGA .
The W3EG2128M72AFSR is a 2x128Mx72 Double Data Rate SDRAM memory module based on 512Mb DDR SDRAM components.

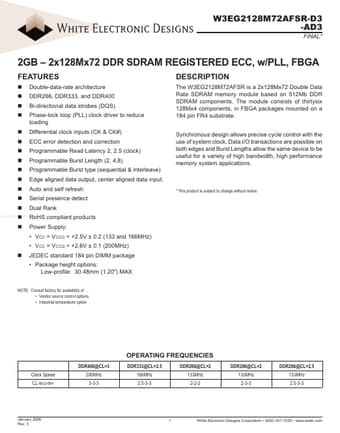

datasheet Preview Page 1 from Datasheet4u.com

W3EG2128M72AFSR-AD3_WhiteElectronic.pdf

W3EG2128M72AFSR-AD3 Datasheet Preview — Preview of W3EG2128M72AFSR-AD3 PDF

Datasheet Details

Part number:

W3EG2128M72AFSR-AD3

Manufacturer:

White Electronic

File Size:

298.80 KB

Description:

2GB - 2x128Mx72 DDR SDRAM REGISTERED ECC

Features

* Double-data-rate architecture DDR266, DDR333, and DDR400 Bi-directional data strobes (DQS) Phase-lock loop (PLL) clock driver to reduce loading Differential clock inputs (CK & CK#) ECC error detection and correction Programmable Read Latency 2, 2.5 (clock) Programmable Burst Length (2, 4,8) Programm

Applications

* This product is subject to change without notice. RoHS compliant products Power Supply:
* VCC = VCCQ = +2.5V ± 0.2 (133 and 166MHz)
* VCC = VCCQ = +2.6V ± 0.1 (200MHz) JEDEC standard 184 pin DIMM package
* Package height options: Low-proﬁle: 30.48mm (1.20") MAX NOTE
