W3EG264M72AFSRXXXD3 Datasheet - White Electronic

W3EG264M72AFSRXXXD3 1GB - 2x64Mx72 DDR SDRAM REGISTERED ECC

The W3EG264M72AFSR is a 2x64Mx72 Double Data Rate SDRAM memory module based on 256Mb DDR SDRAM components. The module consists of thirtysix 64Mx4, in FBGA packages mounted on a 184 pin FR4 substrate. Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions .

W3EG264M72AFSRXXXD3 Features

* Double-data-rate architecture DDR200, DDR266 and DDR333:

* JEDEC design speciļ¬cations Phase-lock loop (PLL) clock driver to reduce loading Bi-directional data strobes (DQS) Differential clock inputs (CK & CK#) Programmable Read Latency 2,2.5 (clock) Programmable Burst Length (2,4,8) Programm

W3EG264M72AFSRXXXD3_WhiteElectronic.pdf

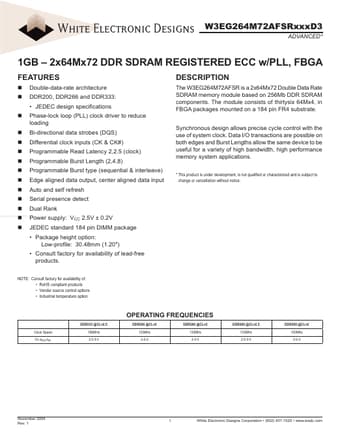

Preview of W3EG264M72AFSRXXXD3 PDF
W3EG264M72AFSRXXXD3 Datasheet Preview Page 2 W3EG264M72AFSRXXXD3 Datasheet Preview Page 3

Datasheet Details

Part number:

W3EG264M72AFSRXXXD3

Manufacturer:

White Electronic

File Size:

253.21 KB

Description:

1gb - 2x64mx72 ddr sdram registered ecc.
