W3EG64128S-AD4 Datasheet - White Electronic

W3EG64128S-AD4 1GB - 2x64Mx64 DDR SDRAM UNBUFFERED

The W3EG64128S is a 2x64Mx64 Double Data Rate SDRAM memory module based on 512Mb DDR SDRAM component. The module consists of eight 128Mx8 stack DDR SDRAMs in 66 pin TSOP packages mounted on a 200 pin FR4 substrate. Synchronous design allows precise cycle control with the use of system clock. Data I/.

W3EG64128S-AD4 Features

* Double-data-rate architecture Bi-directional data strobes (DQS) Differential clock inputs (CK & CK#) Programmable Read Latency 2,2.5 (clock) Programmable Burst Length (2,4,8) Programmable Burst type (sequential & interleave) Edge aligned data output, center aligned data input Auto and self refresh S

W3EG64128S-AD4_WhiteElectronic.pdf

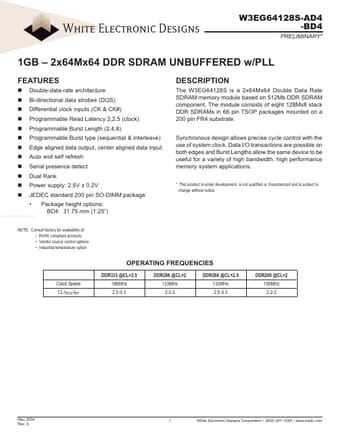

Preview of W3EG64128S-AD4 PDF
W3EG64128S-AD4 Datasheet Preview Page 2 W3EG64128S-AD4 Datasheet Preview Page 3

Datasheet Details

Part number:

W3EG64128S-AD4

Manufacturer:

White Electronic

File Size:

163.26 KB

Description:

1gb - 2x64mx64 ddr sdram unbuffered.
