W3EG6418S-JD3, W3EG6418S-D3 Datasheet - White Electronic

W3EG6418S-JD3 - 16Mx64 DDR SDRAM UNBUFFERED

The W3DG6418S is a 16Mx64 Double Data Rate SDRAM memory module based on 128Mb DDR SDRAM components.

The module consists of eight 16Mx8 DDR SDRAMs in 66 pin TSOP package mounted on a 184 Pin FR4 substrate.

Synchronous design allows precise cycle control with the use of system clock.

Data I/O transact

W3EG6418S-JD3 Features

* Double-data-rate architecture DDR200 and DDR266

* JEDEC design specifications Bi-directional data strobes (DQS) Differential clock inputs (CK & CK#) Programmable Read Latency 2,2,5 (clock) Programmable Burst Length (2,4,8) Programmable Burst type (sequential & interleave) Edge aligned data ou

W3EG6418S-D3_WhiteElectronic.pdf

This datasheet PDF includes multiple part numbers: W3EG6418S-JD3, W3EG6418S-D3. Please refer to the document for exact specifications by model.

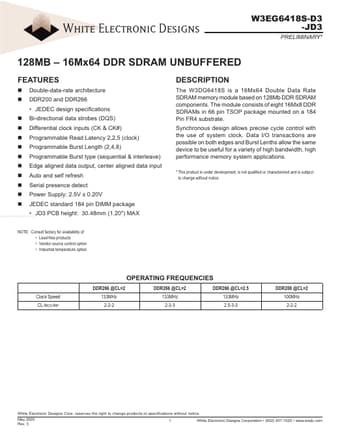

W3EG6418S-JD3 Datasheet Preview Page 2 W3EG6418S-JD3 Datasheet Preview Page 3

Datasheet Details

Part number:

W3EG6418S-JD3, W3EG6418S-D3

Manufacturer:

White Electronic

File Size:

231.16 KB

Description:

16mx64 ddr sdram unbuffered.

Note:

This datasheet PDF includes multiple part numbers: W3EG6418S-JD3, W3EG6418S-D3.
Please refer to the document for exact specifications by model.
