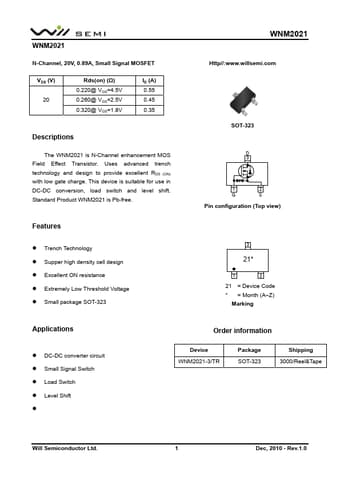

WNM2021
Features z z z z z Trench Technology Supper high density cell design Excellent ON resistance Extremely Low Threshold Voltage Small package SOT-323
- 1 3
21-
21 = Device Code = Month (A~Z) Marking
Applications
Device
Order information
Package SOT-323 Shipping 3000/Reel&Tape z z z z z
DC-DC converter circuit Small Signal Switch Load Switch Level Shift
WNM2021-3/TR
Will Semiconductor Ltd.
Dec, 2010
- Rev.1.0
Absolute Maximum ratings
Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current a Maximum Power Dissipation a Continuous Drain Current b Maximum Power Dissipation b Pulsed Drain Current c Operating Junction Temperature Lead Temperature Storage Temperature Range TA=25°C TA=70°C TA=25°C TA=70°C TA=25°C TA=70°C TA=25°C TA=70°C Symbol VDS VGS ID PD ID PD IDM TJ TL Tstg 0.89 0.71 0.37 0.23 0.78 0.62 0.29 0.18 1.4 150 260
-55 to 150
10 S
Steady State 20 ±6 0.82 0.65 0.31 0.20 0.70 0.56 0.23 0.14
Unit V A W A W A °C °C °C
Thermal resistance...
