ESD5451R

Small Power TVS

WillSEMI

ESD5451R Features

* Reverse stand-off voltage: ±5V Max

* Transient protection for each line according to IEC61000-4-2 (ESD): ±30kV (contact and air discharge) IEC61000-4-4 (EFT): 40A (5/50ns) IEC61000-4-5 (surge): 8A (8/20μs)

* Capacitance: CJ = 17.5pF typ.

* Low leakage current

ESD5451R General Description

The ESD5451R is a bi-directional TVS (Transient Voltage Suppressor). It is specifically designed to protect sensitive electronic components which are connected to low speed data lines and control lines from over-stress caused by ESD (Electrostatic Discharge), EFT (Electrical Fast Transients) and Li.

ESD5451R Datasheet (515.17 KB)

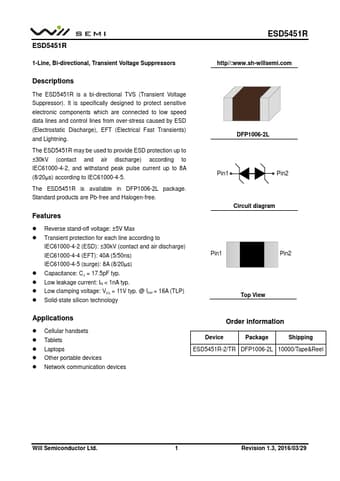

ESD5451R Datasheet Preview — Preview of ESD5451R PDF

Datasheet Details

Part number:

ESD5451R

Manufacturer:

WillSEMI

File Size:

515.17 KB

Description:

Small power tvs.
