ESD5451X

Small Power TVS

WillSEMI

ESD5451X Features

* Circuit diagram

* Reverse stand-off voltage: ±5V Max

* Transient protection for each line according to IEC61000-4-2 (ESD): ±30kV (contact and air discharge) IEC61000-4-4 (EFT): 40A (5/50ns) IEC61000-4-5 (surge): 8A (8/20μs)

* Capacitance:

ESD5451X General Description

The ESD5451X is a bi-directional TVS (Transient Voltage Suppressor). It is specifically designed to protect sensitive electronic components which are connected to low speed data lines and control lines from over-stress caused by ESD (Electrostatic Discharge), EFT (Electrical Fast Transients) and L.

ESD5451X Datasheet (186.24 KB)

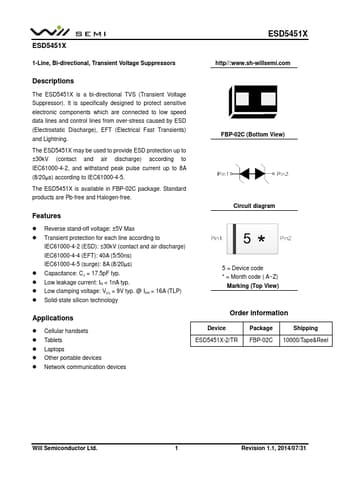

ESD5451X Datasheet Preview — Preview of ESD5451X PDF

Datasheet Details

Part number:

ESD5451X

Manufacturer:

WillSEMI

File Size:

186.24 KB

Description:

Small power tvs.
