ESD5451XZ

Small Power TVS

ESD5451XZ Features

* Reverse stand-off voltage: ±5V Max

* Transient protection for each line according to IEC61000-4-2 (ESD): ±30kV (contact and air discharge) IEC61000-4-4 (EFT): 40A (5/50ns) IEC61000-4-5 (surge): 8A (8/20μs)

* Capacitance: CJ = 17.5pF typ.

* Low leakage cu

ESD5451XZ General Description

The ESD5451XZ is a bi-directional TVS (Transient Voltage Suppressor). It is specifically designed to protect sensitive electronic components which are connected to low speed data lines and control lines from over-stress caused by ESD (Electrostatic Discharge), EFT (Electrical Fast Transients) and L.

ESD5451XZ Datasheet (358.22 KB)

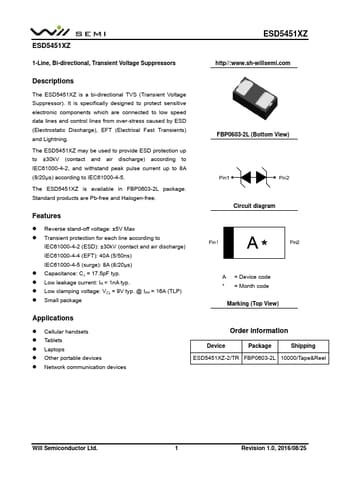

Preview of ESD5451XZ PDF

Datasheet Details

Part number:

ESD5451XZ

Manufacturer:

WillSEMI

File Size:

358.22 KB

Description:

Small power tvs.
