W27C4096 - 256K X 16 ELECTRICALLY ERASABLE EPROM

Winbond

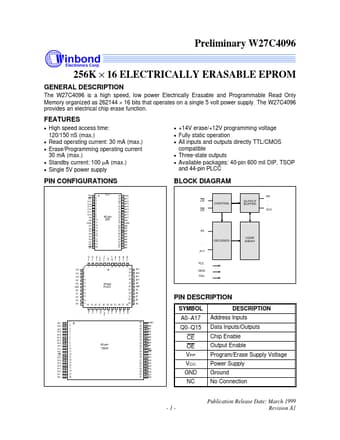

W27C4096 Datasheet Preview — Preview of W27C4096 PDF

Datasheet Details

Part number	W27C4096
Manufacturer	Winbond
File Size	230.18 KB
Description	256K X 16 ELECTRICALLY ERASABLE EPROM
Datasheet	W27C4096_Winbond.pdf

W27C4096 Product details

Description

The W27C4096 is a high speed, low power Electrically Erasable and Programmable Read Only Memory organized as 262144 × 16 bits that operates on a single 5 volt power supply.

Features

High speed access time:.
120/150 nS (max. ) Read operating current: 30 mA (max. ) Erase/Programming operating current 30 mA (max. ) Standby current: 100 µA (max. ) Single 5V power supply.
+14V erase/+12V programming voltage.
Fully static operation.
All inputs and outputs directly TTL/CMOS compatible.
Three-state outputs.
Available packages: 40-pin 600 mil DIP, TSOP and 44-pin PLCC PIN.
