W27C520

64K x 8 ELECTRICALLY ERASABLE EPROM

W27C520 Features

* High speed access time: 70/90 nS (max.)

* Read operating current: 8/20 mA (max.)

* Erase/Programming operating current 30 mA (max.)

* Standby current: 20/100 µA (max.)

* Unregulated battery power supply range, 3.0V to 3.6V and 4.5V to 5.5V

* +13V era

W27C520 General Description

The W27C520 is a high speed, low power Electrically Erasable and Programmable Read Only Memory organized as 65,536 × 8 bits. It includes latches for the lower 8 address lines to multiplex with the 8 data lines. To cooperate with the MCU, this device could save the external TTL component, also cost a.

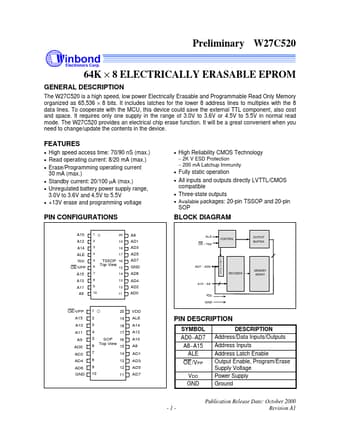

W27C520 Datasheet (236.56 KB)

Preview of W27C520 PDF

Datasheet Details

Part number:

W27C520

Manufacturer:

Winbond

File Size:

236.56 KB

Description:

64k x 8 electrically erasable eprom.
