W27C512 - 64K X 8 ELECTRICALLY ERASABLE EPROM

Winbond

📥 Download Datasheet

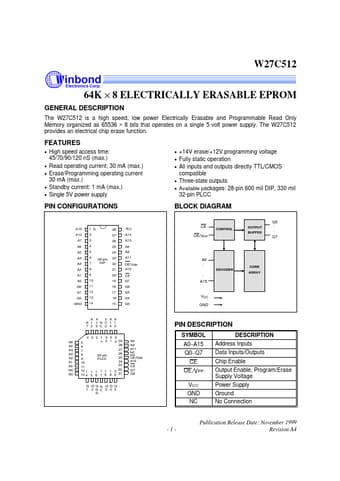

W27C512 Datasheet Preview — Preview of W27C512 PDF

Datasheet Details

Part number: W27C512
Manufacturer: Winbond
File Size: 158.74 KB
Datasheet: W27C512_Winbond.pdf
Description: 64K X 8 ELECTRICALLY ERASABLE EPROM

W27C512 Product details

Description

The W27C512 is a high speed, low power Electrically Erasable and Programmable Read Only Memory organized as 65536 × 8 bits that operates on a single 5 volt power supply.

Features

High speed access time: 45/70/90/120 nS (max. ).
Read operating current: 30 mA (max. ).
Erase/Programming operating current 30 mA (max. ).
Standby current: 1 mA (max. ).
Single 5V power supply.
+14V erase/+12V programming voltage.
Fully static operation.
All inputs and outputs directly TTL/CMOS compatible.
Three-state outputs.
Available packages: 28-pin 600 mil DIP, 330 mil 32-pin PLCC PIN.
