W29C020C - 256K x 8 CMOS FLASH MEMORY

W29C020C Description

W29C020C 256K × 8 CMOS FLASH MEMORY GENERAL .
The W29C020C is a 2-megabit, 5-volt only CMOS flash memory organized as 256K × 8 bits.

W29C020C Features

* Single 5-volt write (erase and program) operations
* Fast page-write operations
* 128 bytes per page
* Page write (erase/program) cycle: 10 mS (max. )
* Effective byte-write (erase/program) cycle time: 39 µS
* Optional software-protected data write

📥 Download Datasheet

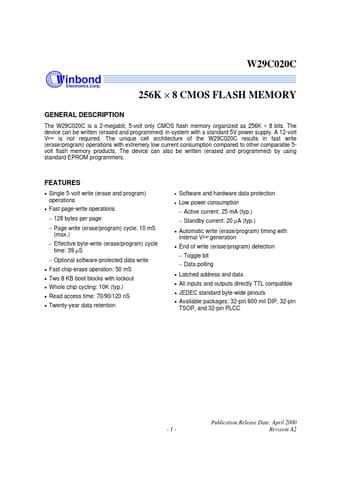

Preview of W29C020C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
W29C020C
Manufacturer
Winbond
File Size
188.17 KB
Datasheet
W29C020C_Winbond.pdf
Description
256K x 8 CMOS FLASH MEMORY
