W29C102 Datasheet PDF - Winbond 64K 16 CMOS FLASH MEMORY Specs

W29C102 - 64K 16 CMOS FLASH MEMORY

Datasheet Summary

Description

The W29C102 is a 1-megabit, 5-volt only CMOS flash memory organized as 64K × 16 bits.

The device can be programmed and erased in-system with a standard 5V power supply.

A 12-volt VPP is not required.

Features

Single 5-volt program and erase operations.
Fast page-write operations.
Low power consumption.
128 words per page.
Page program cycle: 10 mS (max. ).
Effective word-program cycle time: 39 µS.
Optional software-protected data write.
Fast chip-erase operation: 50 mS.
Read access time: 70/90/120 nS.
Typical page program/erase cycles: 1K/10K.
Ten-year data retention.
Software and hardware dat.

Datasheet Details

Part number	W29C102
Manufacturer	Winbond
File Size	219.49 KB
Description	64K 16 CMOS FLASH MEMORY
Datasheet	W29C102 Datasheet
Additional preview pages of the W29C102 datasheet.

📁 Similar Datasheet

W2911 - (W29xx) Oscillator (MF Electronics)

W2912 - (W29xx) Oscillator (MF Electronics)

W2913 - (W29xx) Oscillator (MF Electronics)

W2958NC280 - Rectifier Diode (IXYS)

W2958NC300 - Rectifier Diode (IXYS)

W2958NC320 - Rectifier Diode (IXYS)

W2971 - (W29xx) Oscillator (MF Electronics)

W2972 - (W29xx) Oscillator (MF Electronics)

W2973 - (W29xx) Oscillator (MF Electronics)

W29NK50Z - N-CHANNEL SuperMESH MOSFET (STMicroelectronics)

Full PDF Text Transcription

Click to expand full text

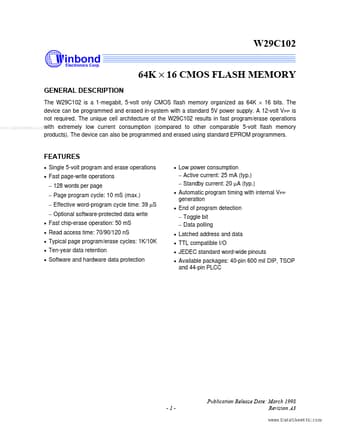

W29C102 64K × 16 CMOS FLASH MEMORY GENERAL DESCRIPTION The W29C102 is a 1-megabit, 5-volt only CMOS flash memory organized as 64K × 16 bits. The device can be programmed and erased in-system with a standard 5V power supply. A 12-volt VPP is not required. The unique cell architecture of the W29C102 results in fast program/erase operations with extremely low current consumption (compared to other comparable 5-volt flash memory www.DataSheet4U.com products). The device can also be programmed and erased using standard EPROM programmers. FEATURES • Single 5-volt program and erase operations • Fast page-write operations • Low power consumption − 128 words per page − Page program cycle: 10 mS (max.
