W83L177R

100MHZ 2-DIMM SDRAM BUFFER FOR NOTEBOOK

W83L177R Features

* Supports Intel Pentium II CPUs for BX chipset

* 10 SDRAM clocks for 2-DIMMs

* Clock skew less than 250ps

* Almost none delay Buffer-in controlling SDRAM clocks(< 4ns propagation delay)

* I2C 2-wire serial interface

* Programmable registers to enable/

W83L177R General Description

The W83L177R is a 10 outputs SDRAM clock buffer for 2-DIMMs models incorporate with W83L197R-16 which is the clock synthesizer especially for the 100MHz models such as Intel BX chipsets.(Refer the datasheet fo Winbond W83L197R-16) The W83L177R receives the clock from chipset by the Buffer_In pin and.

W83L177R Datasheet (432.78 KB)

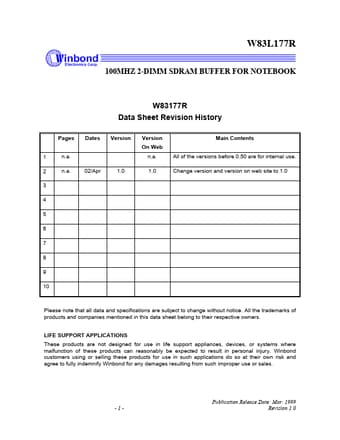

Preview of W83L177R PDF

Datasheet Details

Part number:

W83L177R

Manufacturer:

Winbond

File Size:

432.78 KB

Description:

100mhz 2-dimm sdram buffer for notebook.
W83L177R 100MHZ 2-DIMM SDRAM BUFFER FOR NOTEBOOK W83177R Data Sheet Revision History Pages 1 2 3 4 5 6 7 8 9 10 n.a. n.a. 02/Apr 1.0 Dates Version Ve.
