W83L197R-16 Datasheet - Winbond

2-CHIP 100MHZ CLOCK FOR BX NOTEBOOK

W83L197R-16 Features

* Supports Pentium II CPUs 4 sets of CPU frequencies selection 2 CPU clocks (one free running CPU clock) 6 PCI synchronous clocks(one free running PCI clock) Optional single or mixed supply: (Vdd3 = Vd

W83L197R-16 General Description

The W83L197R-16 is a Clock Synthesizer which provides all clocks required for high-speed RISC or CISC microprocessor. Four different frequency of CPU, and PCI clocks are externally selectable with smooth transitions. The 0.5% or 0.75% center type spread spectrum can be selected to reduce EMI. The W8.

W83L197R-16 Datasheet (510.29 KB)

Preview of W83L197R-16 PDF

Datasheet Details

Part number:

W83L197R-16

Manufacturer:

Winbond

File Size:

510.29 KB

Description:

2-chip 100mhz clock for bx notebook.

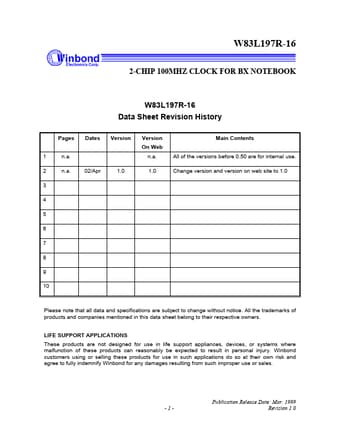

W83L197R-16 2-CHIP 100MHZ CLOCK FOR BX NOTEBOOK W83L197R-16 Data Sheet Revision History Pages 1 2 3 4 5 6 7 8 9 10 n.a. n.a. 02/Apr 1.0 Dates Version.
