W83L785R

WINBOND H/W MONITORING IC FOR NOTEBOOK

W83L785R Features

* 2.1 Monitoring Items

* 2 thermal inputs from remote thermistors or 2N3904 NPN-type transistors or PentiumTM II (Deschutes) thermal diode output

* 4 voltage inputs

* - typical for Vcore, +3.3V (Power), +2.5V, +1.5V

* 2 sets of PWM fan speed control

* WATCHDOG co

W83L785R General Description

W83L785R is a condensed product of W83L785R

*- Winbond's most popular hardware monitoring IC for notebook. Specifically designed for the graphic cards and notebook systems, W83L785R can be used to monitor several critical hardware parameters of the system, including voltages, fan speeds, and.

W83L785R Datasheet (282.70 KB)

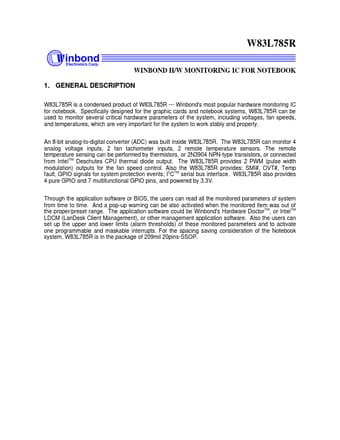

Preview of W83L785R PDF

Datasheet Details

Part number:

W83L785R

Manufacturer:

Winbond

File Size:

282.70 KB

Description:

Winbond h/w monitoring ic for notebook.
