W91550DN, W91 - 13-MEMORY TONE/PULSE DIALER WITH LCD AND LOCK FUNCTION

Winbond

📥 Download Datasheet

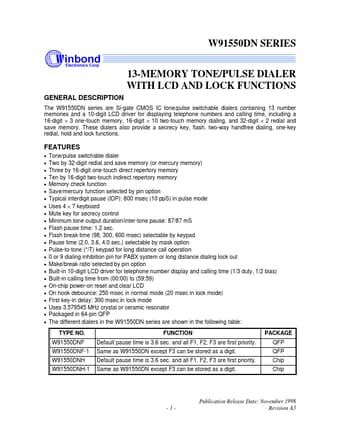

W91550DN Datasheet Preview — This datasheet PDF includes multiple part numbers: W91550DN, W91. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	W91550DN, W91
Manufacturer	Winbond
File Size	468.29 KB
Description	13-MEMORY TONE/PULSE DIALER WITH LCD AND LOCK FUNCTION
Datasheet	W91-550.pdf
Note	This datasheet PDF includes multiple part numbers: W91550DN, W91. Please refer to the document for exact specifications by model.

W91550DN Product details

Description

The W91550DN series are Si-gate CMOS IC tone/pulse switchable dialers containing 13 number memories and a 10-digit LCD driver for displaying telephone numbers and calling time, including a 16-digit × 3 one-touch memory, 16-digit × 10 two-touch memory dialing, and 32-digit × 2 redial and save memory.

Features

Tone/pulse switchable dialer Two by 32-digit redial and save memory (or mercury memory) Three by 16-digit one-touch direct repertory memory Ten by 16-digit two-touch indirect repertory memory Memory check function Save/mercury function selected by pin option.
