PFM1N80 Datasheet - Wing On

PFM1N80 N-Channel MOSFET

PFM1N80 Features

*  Originative New Design  100% EAS Test  Rugged Gate Oxide Technology  Extremely Low Intrinsic Capacitances  Remarkable Switching Characteristics  Unequalled Gate Charge : 7.0 nC (Typ.)  Extended Safe Operating Area  Lower RDS(ON) : 13 Ω (Typ.) @VGS=10V APPLICATION  Low power battery charger

PFM1N80 Datasheet (952.58 KB)

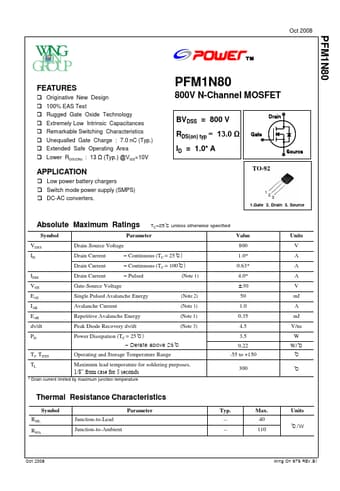

Preview of PFM1N80 PDF

Datasheet Details

Part number:

PFM1N80

Manufacturer:

Wing On

File Size:

952.58 KB

Description:

N-channel mosfet.
