KA3843AM Datasheet, controller equivalent, Wing Shing

KA3843AM Features

• Controller
• Low Start-Up and Operating Current High Current Totem Pole Output Undervoltage Lockout With Hysteresis Operating Frequency Up To 500KHz BLOCK DI

PDF File Details

Part number:

KA3843AM

Manufacturer:

Wing Shing

File Size:

693.65kb

Download:

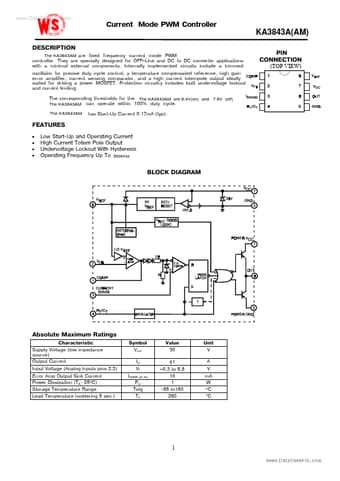

📄 Datasheet

Description:

Current mode pwm controller. The KA3843AM are fixed frequency current mode PWM controller. They are specially designed for OFF

Line and DC to DC converter

KA3843AM Application

• Applications with a minimal external components. Internally implemented circuits include a trimmed oscillator for precise duty cycle control, a temp
