KA3843AC Datasheet - Fairchild Semiconductor

SMPS Controller

KA3843AC Features

* Low start current 0.2mA (typ) Operating range up to 500kHz Cycle by cycle current limiting Under voltage lock out with hysteresis Short shutdown delay time: typ.100ns High current totem-pole output Output swing limiting: 22V Desc

KA3843AC General Description

The KA3843AC are fixed PWM controller for Off-Line and DC to DC converter applications. The internal circuits include UVLO, low start up current circuit, temperature compensated reference, high gain error amplifier, current sensing comparator, and high current totem-pole output for driving a POWER M.

KA3843AC Datasheet (83.21 KB)

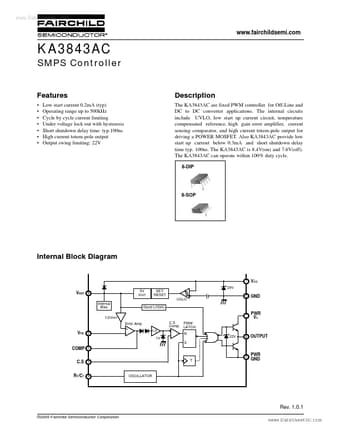

KA3843AC Datasheet Preview — Preview of KA3843AC PDF

Datasheet Details

Part number:

KA3843AC

Manufacturer:

Fairchild Semiconductor

File Size:

83.21 KB

Description:

Smps controller.
