KA3842AC Datasheet - Fairchild Semiconductor

SMPS Controller

KA3842AC Features

* Low start current 0.2mA (Typ.)

* Operating range up to 500kHz

* Cycle by cycle current limiting

* Under Voltage Lock Out (UVLO) with hysteresis

* Short shutdown delay time: Typ.100ns

* High current totem-pole output

* Output swing limiting: 2

KA3842AC General Description

The KA3842AC/KA3842AE are fixed PWM controllers for Off Line and DC to DC converter applications. The internal circuits include UVLO, low start up current, temperature compensated reference, high gain error amplifier, current sensing comparator, and high current totem pole output for driving a POWER.

KA3842AC Datasheet (126.58 KB)

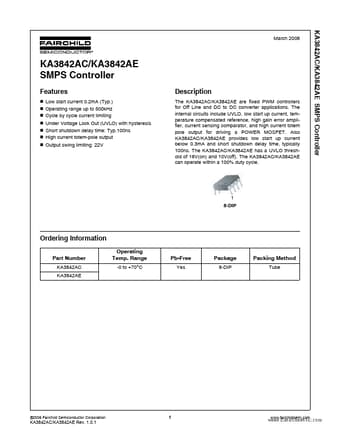

KA3842AC Datasheet Preview — Preview of KA3842AC PDF

Datasheet Details

Part number:

KA3842AC

Manufacturer:

Fairchild Semiconductor

File Size:

126.58 KB

Description:

Smps controller.
