SFTN7210MP N-Channel MOSFET

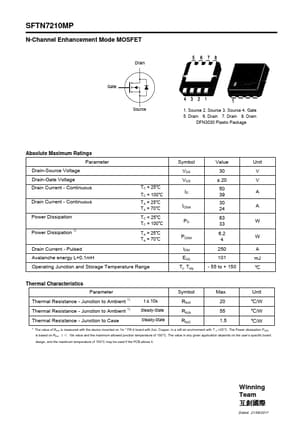

SFTN7210MP N-Channel Enhancement Mode MOSFET Drain Gate Source 1. Source 2. Source 3. Source 4. Gate 5. Drain 6. Drain 7. Drain 8. Drain DFN3030 Plastic Package Absolute Maximum Ratings Parameter Symbol Value Unit Drain-Source Voltage Drain-Gate Voltage Drain Current - Continuous Drain Current - Continuous Power Dissipation Power Dissipation 1) VDS 30 V VGS ± 20 V TC = 25℃ TC = 100℃ ID 50 39 A TA = 25℃ TA = 70℃ IDSM 30 24 A TC = 25℃ TC = 100℃ PD 83 33 W TA = 25℃ TA = 70.
