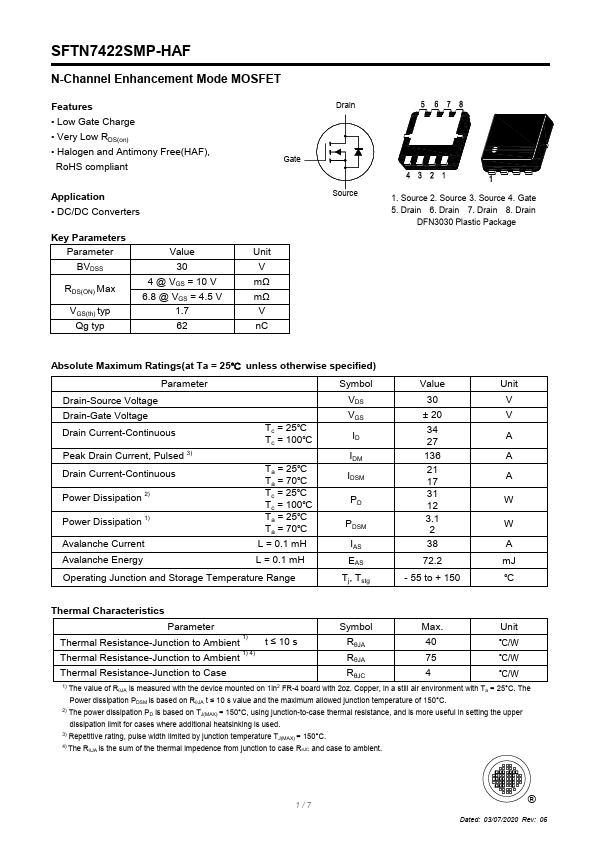

SFTN7422SMP-HAF Datasheet - SEMTECH

SFTN7422SMP-HAF - N-Channel Enhancement Mode MOSFET

SFTN7422SMP-HAF Features

* Low Gate Charge

* Very Low RDS(on)

* Halogen and Antimony Free(HAF), Gate RoHS compliant Application

* DC/DC Converters Key Parameters Parameter Value Unit BVDSS 30 V 4 @ VGS = 10 V mΩ RDS(ON) Max 6.8 @ VGS = 4.5 V mΩ VGS(th) typ 1.7 V Qg typ 62 n

Datasheet Details

SFTN7422SMP-HAF

SEMTECH

481.64 KB

N-channel enhancement mode mosfet.
