STU4A60H

Bi-Directional Triode Thyrist

Winsemi

STU4A60H Features

* Repetitive Peak Off-State Voltage : 600V

* R.M.S On-State Current ( IT(RMS)= 4 A )

* Low On-State Voltage (1.6V(Typ.) @ ITM)

* High Commutation dv/dt

* High Junction temperature(TJ=150℃) General Description Winsemi Triac STF4A60H is designed for full wave AC control application

STU4A60H General Description

Winsemi Triac STF4A60H is designed for full wave AC control applications. It can be used as an ON/OFF function or for phase control operation. Typical Application
* Home Appliances : Washing Machines, Vacuum Cleaners, Rice Cookers, Micro Wave Ovens, Hair Dryers, other control applications
* .

STU4A60H Datasheet (270.77 KB)

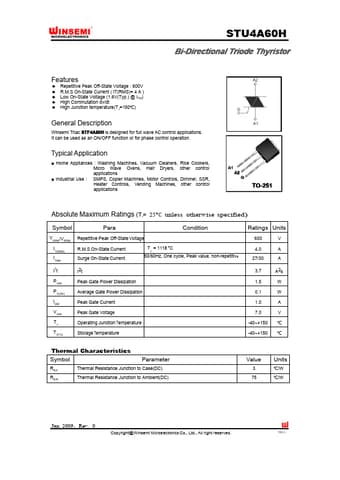

STU4A60H Datasheet Preview — Preview of STU4A60H PDF

Datasheet Details

Part number:

STU4A60H

Manufacturer:

Winsemi

File Size:

270.77 KB

Description:

Bi-directional triode thyrist.
