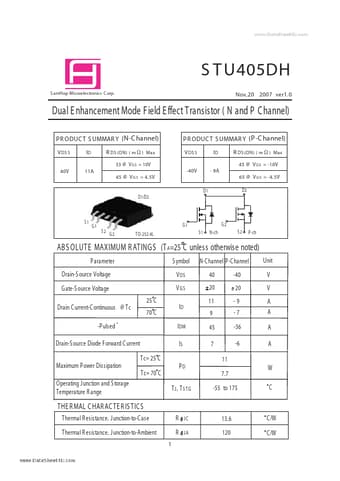

www.DataSheet4U.com S T U405DH S amHop Microelectronics C orp.

Nov,20 2007 ver1.0 Dual E nhancement Mode Field E ffect Transistor ( N and P Channel) P R ODUC T S UMMAR Y (N-C hannel) V DS S 40V P R ODUC T S UMMAR Y (P -C hannel) V DS S -40V ID 11A R DS (ON) ( m Ω ) Max ID - 9A R DS (ON) ( m Ω ) Max 33 @ V G S = 10V 45 @ V G S = 4.5V D1 D1/D2 45 @ V G S = -10V 65 @ V G S = -4.5V D2 S1 G1 S2 G2 TO-252-4L G1 S1 N-ch G2 S2 P -ch ABS OLUTE MAXIMUM R ATINGS (T A=25 C unless otherwise
