S amHop Microelectronics C orp.

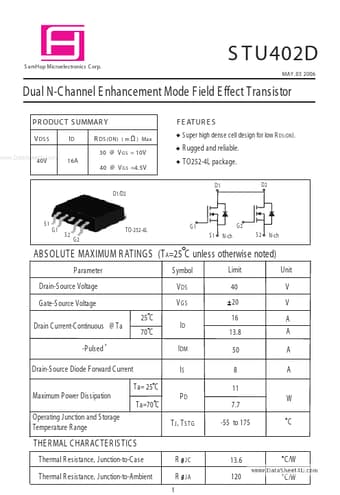

S T U402D MAY .03 2006 Dual N-C hannel E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y V DS S www.DataSheet4U.com F E AT UR E S ( m W ) Max ID 16A R DS (ON) S uper high dense cell design for low R DS (ON ).

30 @ V G S = 10V 40 @ V G S =4.5V R ugged and reliable.

TO252-4L package.

D1 D2 40V D1/D2 S1 G1 S2 TO-252-4L G2 G1 S1 N-ch G2 S2 N-ch ABS OLUTE MAXIMUM R ATINGS (T A=25 C unless otherwise noted) P arameter Drain-S ource Voltage
