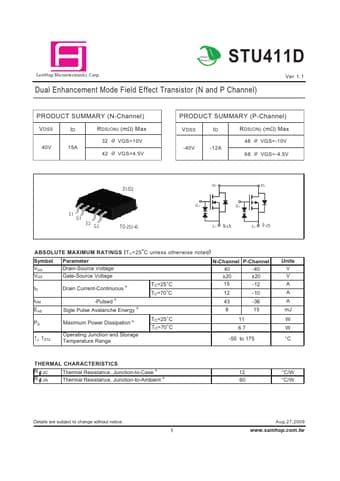

STU411D Datasheet - SamHop

Green Product STU411D Ver 1.1 S a mHop Microelectronics C orp.

Dual Enhancement Mode Field Effect Transistor (N and P Channel) PRODUCT SUMMARY (N-Channel) V DSS 40V PRODUCT SUMMARY (P-Channel) V DSS -40V ID 15A R DS(ON) (m Ω) Max 32 @ VGS=10V ID -12A R DS(ON) (m Ω) Max 48 @ VGS=-10V 68 @ VGS=-4.5V 42 @ VGS=4.5V D1/D2 G1 D1 D2 G2 S1 G1 S2 G2 TO-252-4L S1 N-ch S2 P -ch ABSOLUTE MAXIMUM RATINGS ( T C=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM EAS PD TJ, TSTG Parameter D
