STU314D Dual Enhancement Mode Field Effect Transistor

Green Product STU314D Ver 1.0 S a mHop Microelectronics C orp. Dual Enhancement Mode Field Effect Transistor (N and P Channel) PRODUCT SUMMARY (N-Channel) V DSS 30V PRODUCT SUMMARY (P-Channel) V DSS -30V ID 16A R DS(ON) (m Ω) Max 28 @ VGS=10V ID -14A R DS(ON) (m Ω) Max 34 @ VGS=-10V 55 @ VGS=-4.5V 40 @ VGS=4.5V D1/D2 G1 D1 D2 G2 S1 G1 S2 G2 TO-252-4L S1 N-ch S2 P -ch ABSOLUTE MAXIMUM RATINGS ( T C=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM EAS PD TJ, TSTG Parameter D.

STU314D Datasheet (267.48 KB)

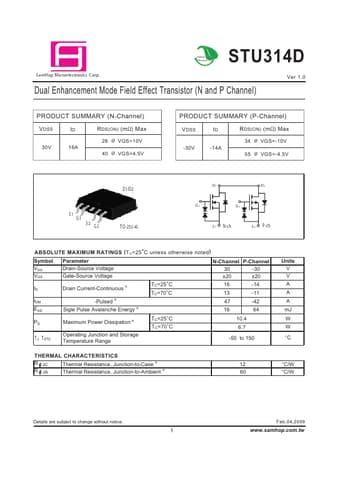

STU314D Datasheet Preview — Preview of STU314D PDF

Datasheet Details

Part number:

STU314D

Manufacturer:

SamHop

File Size:

267.48 KB

Description:

Dual enhancement mode field effect transistor.
