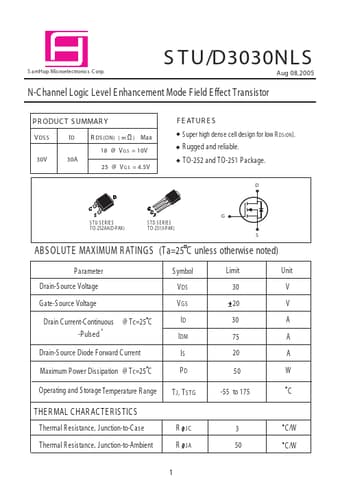

S T U/D3030NLS F E AT UR E S ( mW) Aug 08 , 2005 N-C hannel Logic Level E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y V DS S 30V ID 30A R DS (ON) Max S uper high dense cell design for low R DS (ON ).
18 @ V G S = 10V 25 @ V G S = 4.5V R ugged and reliable.
TO-252 and TO-251 P ackage.
D D G S G D S G S TU S E R IE S TO-252AA(D-P AK) S TD S E R IE S TO-251(l-P AK) S ABS OLUTE MAXIMUM R ATINGS (Ta=25 C unless othe
