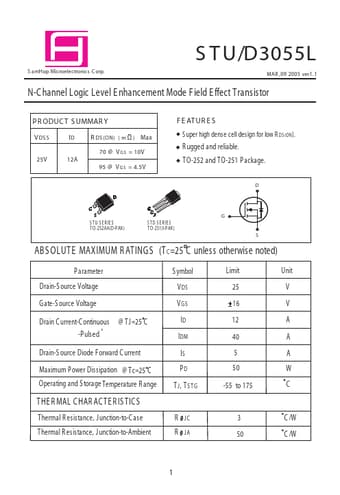

STU3055L - N-Channel Logic Level E nhancement Mode F ield E ffect Transistor
www.DataSheet4U.com S T U/D3055L S amHop Microelectronics C orp.
MAR ,09 2005 ver1.1 N-C hannel Logic Level E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y V DS S 25V F E AT UR E S ( mW) ID 12A R DS (ON) Max S uper high dense cell design for low R DS (ON ).
70 @ V G S = 10V 95 @ V G S = 4.5V R ugged and reliable.
TO-252 and TO-251 P ackage.
D D G S G D S G S TU S E R IE S TO-252AA(D-P AK) S TD S E R IE S TO-251(l-P AK) S ABS OLUTE MAXIMUM R ATINGS (T C =25 C unless
