STU313D Dual Enhancement Mode Field Effect Transistor

STU313D S a mHop Microelectronics C orp. Ver 1.0 Dual Enhancement Mode Field Effect Transistor (N and P Channel) PRODUCT SUMMARY (N-Channel) V DSS 30V PRODUCT SUMMARY (P-Channel) V DSS -30V ID 16A R DS(ON) (m Ω) Max 24 @ VGS=10V ID -15A R DS(ON) (m Ω) Max 33 @ VGS=-10V 52 @ VGS=-4.5V 35 @ VGS=4.5V D1/D2 G1 D1 D2 G2 S1 G1 S2 G2 TO-252-4L S1 N-ch S2 P -ch ABSOLUTE MAXIMUM RATINGS ( T C=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM I AS EAS PD TJ, TSTG Parameter Drain-Sourc.

STU313D Datasheet (244.86 KB)

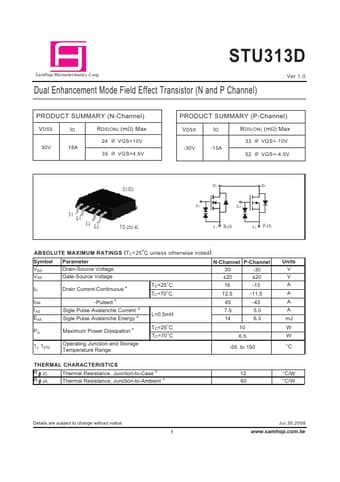

STU313D Datasheet Preview — Preview of STU313D PDF

Datasheet Details

Part number:

STU313D

Manufacturer:

SamHop

File Size:

244.86 KB

Description:

Dual enhancement mode field effect transistor.
