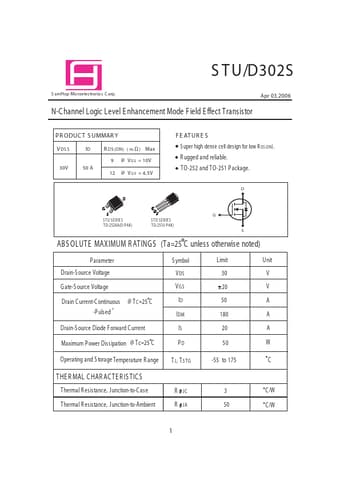

STU302S - N-Channel Logic Level E nhancement Mode Field Effect Transistor
www.DataSheet4U.com S T U/D302S S amHop Microelectronics C orp.
Apr 03 , 2006 N-C hannel Logic Level E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y V DS S 30V F E AT UR E S ( mΩ) ID 50 A R DS (ON) 9 12 Max S uper high dense cell design for low R DS (ON ).
@ V G S = 10V @ V G S = 4.5V R ugged and reliable.
TO-252 and TO-251 P ackage.
D D G S G D S G S TU S E R IE S TO-252AA(D-P AK) S TD S E R IE S TO-251(l-P AK) S ABS OLUTE MAXIMUM R ATINGS (Ta=25 C unless otherwi
