STU309D Datasheet - SamHop

STU309D Dual FET

S T U309D S amHop Microelectronics C orp. Nov 22 2006 Dual E nhancement Mode Field E ffect Transistor ( N and P Channel) P R ODUC T S UMMAR Y (N-C hannel) V DS S 30V P R ODUC T S UMMAR Y (P -C hannel) V DS S -30V ID 18A R DS (ON) ( m Ω ) Max ID -14A R DS (ON) ( m Ω ) Max 23 @ V G S = 10V 35 @ V G S = 4.5V D1 35 @ V G S = -10V 55 @ V G S = -4.5V D2 D1/D2 G1 G2 S1 G1 S2 G2 TO-252-4L S1 N-ch S2 P -ch ABS OLUTE MAXIMUM R ATINGS (T A=25 C unless otherwise noted) P arameter Drain-S o.

STU309D Datasheet (188.40 KB)

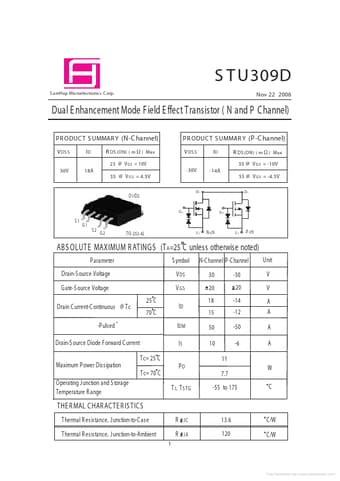

STU309D Datasheet Preview — Preview of STU309D PDF

Datasheet Details

Part number:

STU309D

Manufacturer:

SamHop

File Size:

188.40 KB

Description:

Dual fet.
