STU410S Datasheet (SamHop Microelectronics) - N-Channel Logic Level Enhancement Mode Field Effect Transistor

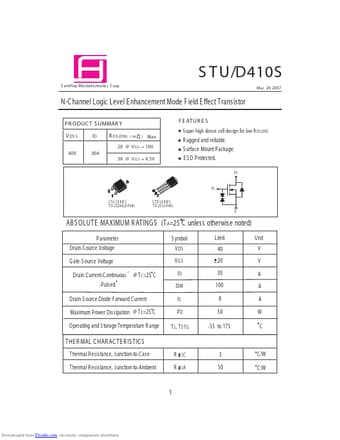

STU410S, N-Channel Logic Level Enhancement Mode Field Effect Transistor

S T U/D410S S amHop Microelectronics C orp.

Mar.

26 2007 N-C hannel Logic Level E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y V DS S 40V F E AT UR E S S uper high dense cell design for low R DS (ON ).

ID 30A R DS (ON) ( m W ) Max 20 @ V G S = 10V 30 @ V G S = 4.5V R ugged and reliable.

S urface Mount P ackage.

E S D P rotected.

D D G S G D G S S TU S E R IE S TO-252AA(D-P AK) S TD S E R IE S TO-251(l-P AK) S ABS OLUTE MAXIMUM R ATINGS (T A=25 C unless otherwise noted)
