STU4N62K3 - SuperMESH3 Power MOSFET

ST Microelectronics

📥 Download Datasheet

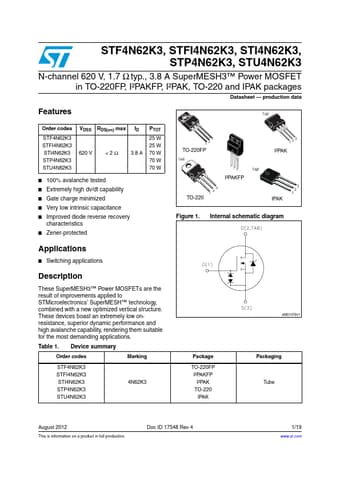

STU4N62K3 Datasheet Preview — Preview of STU4N62K3 PDF

Datasheet Details

Part number: STU4N62K3
Manufacturer: STMicroelectronics ↗
File Size: 1.00 MB
Datasheet: STU4N62K3_STMicroelectronics.pdf
Description: SuperMESH3 Power MOSFET

STU4N62K3 Product details

Description

These devices are made using the SuperMESH3™ Power MOSFET technology that is obtained via improvements applied to STMicroelectronics’ SuperMESH™ technology combined with a new optimized vertical structure.

Features

Type STD4N62K3 STU4N62K3.
VDSS 620 V RDS(on) max < 1.95 Ω ID 3.8 A Pw 70 W 3 1 2 1 3 100% avalanche tested Extremely high dv/dt capability Gate charge minimized Very low intrinsic capacitances Improved diode reverse recovery characteristics Zener-protected DPAK IPAK Figure 1. Internal schematic diagram D(2) Application.
Switching.
